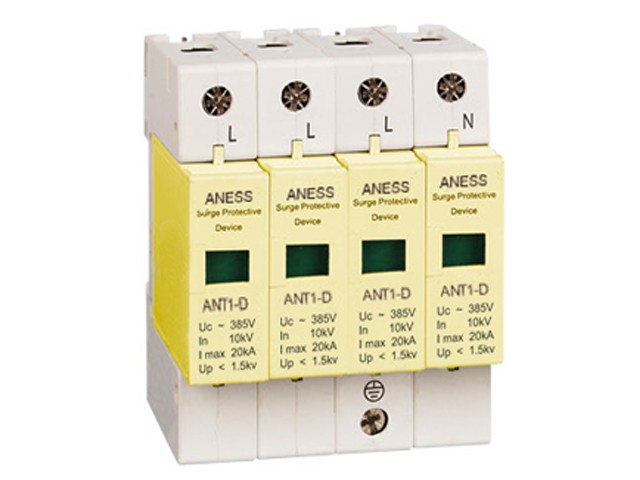

Product Type: Surge Protective Device Product Info: ANT1-D

Prev Next

Online Services:

Place of Origin: China

Certification: ISO9001-CE

Contact Details:

Email: info@aness.cn

Tel: +86 13757778680

Fax:

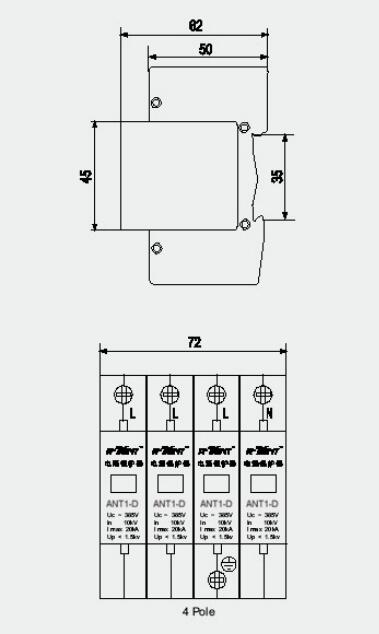

Application	Specification	Dimension

Circuit Breaker & AutomaticTransfer Switch

Contactor & Industrial electrical appliances

2015 © Copyright WENZHOU CHENLU IMP.&EXP. CO.,LTD TEL: +86 13757778680 FAX: Design By:Otree.cn

Sitemap Google+ Product Summary DC circuit breaker PRIVACY POLICY

X

If you have any enquiry about quotation or cooperation, please feel free to email us at info@aness.cn or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.

Subject:
Message:
*Name:
*Email:	(Please make sure your E-mail address is correct otherwise the recipient will not be able to reply.)
CompanyName:
Tel:	(Please make sure your Business Phone is correct otherwise the recipient will not be able to reply.)
Fax:
Address:
Products:

Techical Parameters	ANT1-D
Rated Operating Voltage Uc(V~)	220V	380V	220V	380V
Maximum Continuous Operatin Voltage	275V	385V	320V	385V
Voltage Protection Level Up(V~)KV	≤0.7	≤1.0	≤1.2	≤1.5
Nomimal Discharge Current In(8/μ 20μs)KA	5		10
Maximum Discharge Current Imax(8/μ 20μs)KA	10		20
Response Time ns	<25
Test Standard	GB18802,IEC61643-1
The Cross Section of PE line PE(mm)	10
Fuse or Switch(A)	10A,18A		16A,25A
Operating Environment(℃)	-40℃~+85℃
Relative Humidity(25℃)	≤95%
Installation	Standard Rail 35mm
Material of Outer Covering	Fiber glass reinforced plastic
